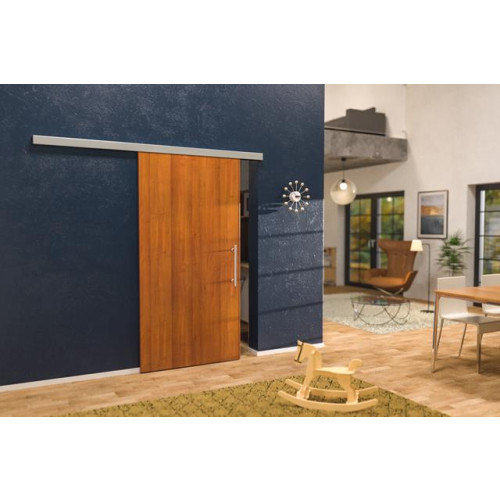

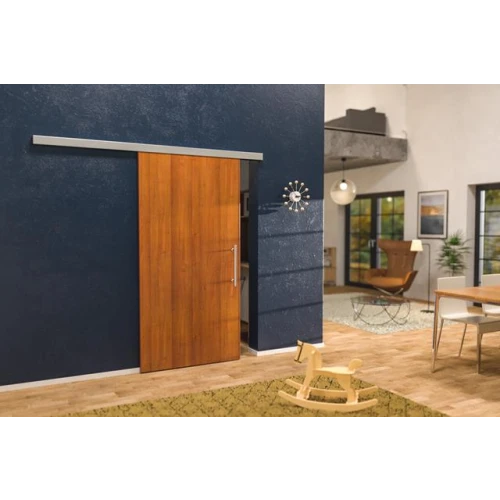

Sliding Door Door Set 2m (50kg Max)
Smooth running quality system for commercial and residential interior doors
Supplied in a single box which includes the track
For 1 and 2 leaf sliding doors
-
Trolley hangers have four axle bears
Door height adjustable
Suspension fitting with screw on support flange
Tested to EN1527:2013, 100,000 cycles
Running track length
2,000.00 mm
Material/finish
Steel Aluminium Plastic Rubber
For door material
Wood
Controller installation options
Wall mounting
For door thickness
28?–?40 mm
Number of doors
1.00
Number of doors per system max.
1 to 2
Note on door width
Ceiling installation - Max. 40 mm
Wall mounted installation with clip panel and concealed mounting bracket - 30 mm
Running position
Top
Adjustment facility
height adjustment
Installation
Suspension with screwed on support flange
Door processing
for screw fixing
Häfele Lifetime Guarantee
10 years
Mounting bracket and clip panels must be ordered separately if required
Supplied with
Fitting set includes:
1x 2.0 m Top track, pre-drilled, silver coloured anodised aluminium
2x Running gear, 4 rollers, support flange for screw fixing, galvanized steel
1x Track buffer, 26 x 56 x 19 mm, with retaining spring and rubber buffer
1x Bottom guide, 24 x 60 x 30 mm, white or grey plastic
